Gear hobs with protuberance for involute gear froms
2021-11-10 09:39:01
jiangxingTools
4112
Gear hobs with protuberance for involute gear froms
for straight spur gears with straight teeth and helical teeth to module with protuberance
for rough hobbing prior to grinding or skive hobbing
20° pressure angle

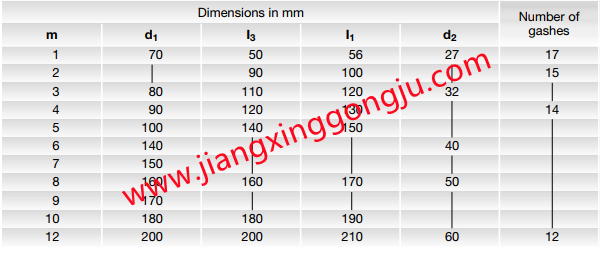

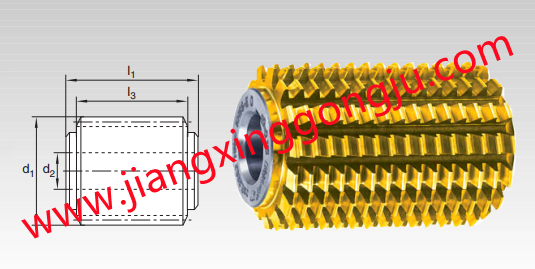

Conventional dimensions of gear hobs with protuberance for involute gear forms as following:
Please contact us for more details on pre-grinding gear hobs when you have some new needing.
