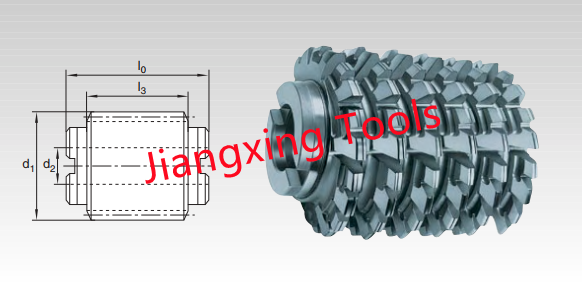

Heavy duty roughing hobs with involute gear froms
for spur and helical gears to module pitch
20° pressure angle
basic profile III to DIN 3972
with positive rake (undercut)
optionally with chip breaker grooves
single start right-handed
with drive slot
Please contact us for more details on heavy duty roughing hob, large module hob, involute gear hob, chain sprocket hob, worm gear hob, spline hobs, timing belt pulley hob, etc HSS Gear Hobbing Tools.
