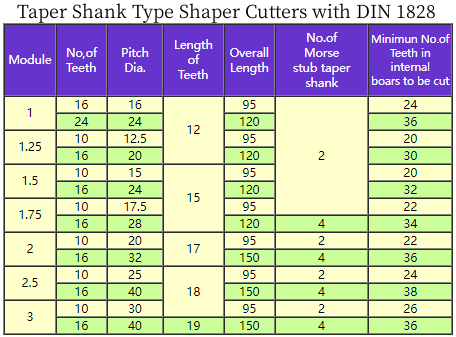

Taper Shank Type Shaper Cutters with DIN 1828
These shaper cutters are 20° PA, non-topping finishing cutters for straight spur gears,
tooth profile of shaper cutters is according to DIN 3972 profile Ⅱ，
there is no center hole on cutting face end of shaper cutter.
More taper is No. 2 and No.4 for above shank type shaper cutters.
